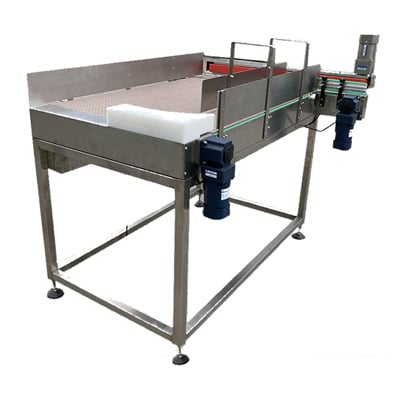

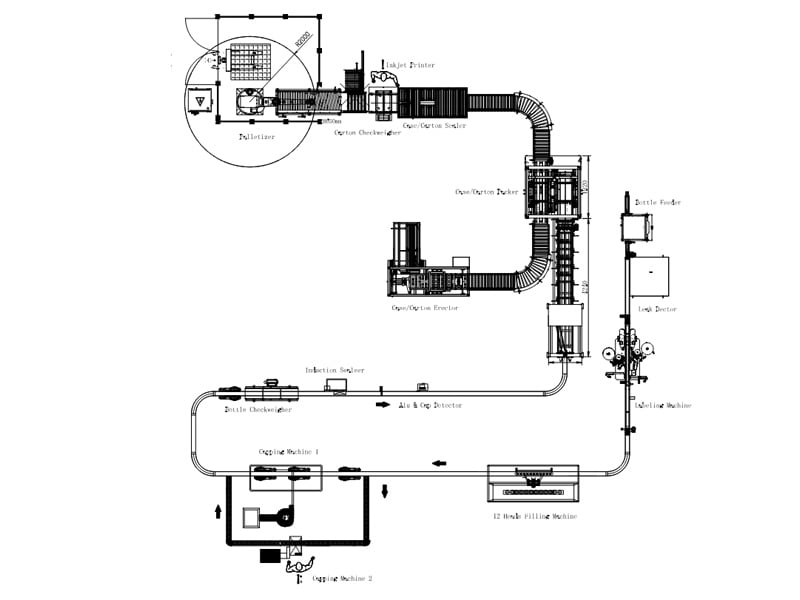

The bottle-feeding conveyor is equipped with a wide conveyor belt, frequency converter, motor, and bottle-blocking sensor. Empty bottles are manually placed on the belt and automatically conveyed into the production line for further processing. This configuration keeps bottle transfer steady while reducing manual handling.

• Material: SUS304
• Speed: 0-10 m/min (adjustable)
• Power supply: AC220V, 50/60Hz, 1P

By inflating each bottle and monitoring internal pressure changes, the leak tester detects even the smallest air leaks. If a defect or pinhole is detected, the testing system automatically rejects the faulty bottle, preventing defective products from reaching the market.

• Output: 2,000-3,600 bottles/hour
• Power supply: AC220V, 50/60Hz, 1P

This labeling system applies front and back labels automatically and includes a vision inspection unit that photographs each labeled bottle to check alignment and surface condition. Any bottles with misaligned or wrinkled labels are automatically detected and rejected. Dual cameras and a computer system ensure fast, accurate label inspection for consistent presentation.

• Labeling speed: 40–100 bottles/min
• Power supply: AC220V, 50/60Hz, 1P

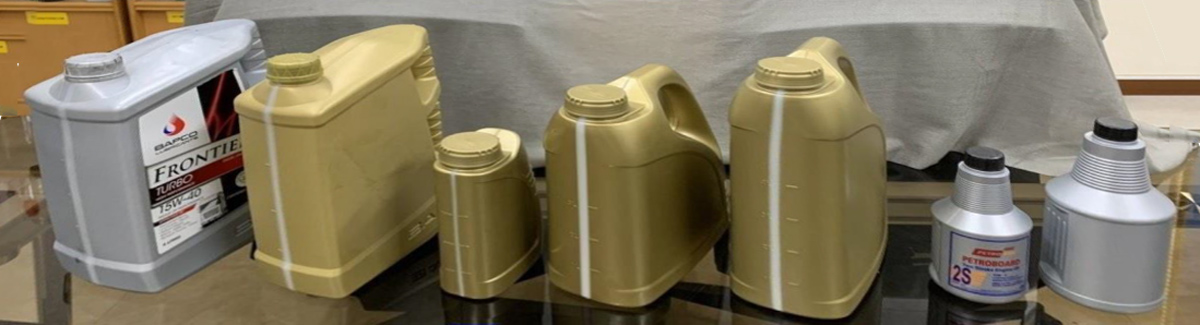

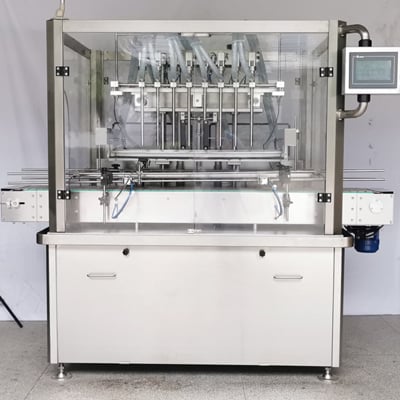

Using twelve synchronized gear pumps, this liquid filling machine achieves accurate and high-speed filling for 0.5–5L lubricant bottles. It can be fitted with an optional storage tank and features a touchscreen interface, PLC control, servo-driven operation, and automatic CIP cleaning. The entire filling machine is made of stainless steel (SUS304) for durability and hygiene.

• Output: 3,600-4,200 bottles/hour (1L)
• Filling accuracy: ±0.5%
• Power supply: AC380V, 50/60Hz, 3P

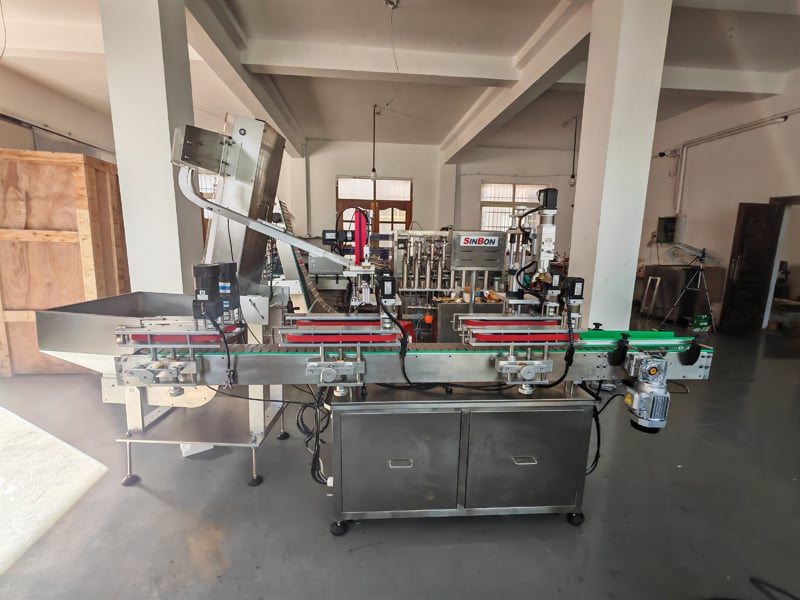

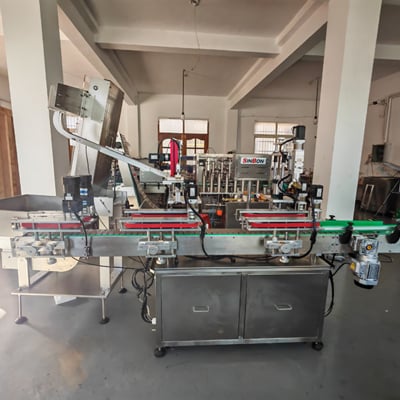

The servo capping machine features a robotic arm for cap placement and tightening, accommodating large height differences among bottles from 0.5L to 5L. It uses a fixed cap-picking position and adjustable guide rails to ensure quick changeovers and compatibility with various cap sizes. Two capping units are installed to match the line’s total production capacity.

• Output: 1,200-1,800 bottles/hour
• Power supply: AC220V, 50/60Hz, 1P

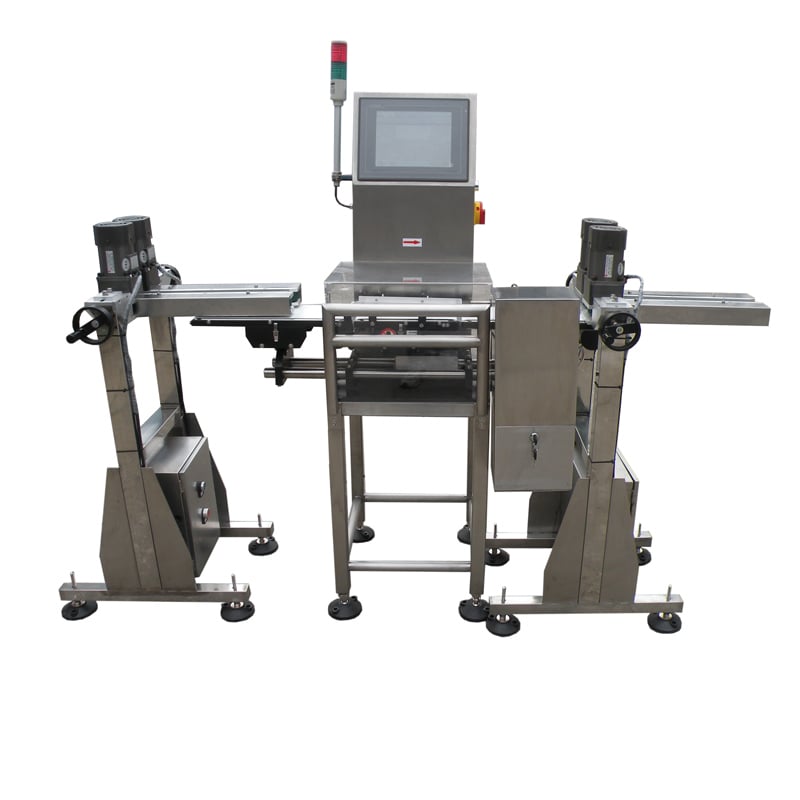

The checkweigher automatically verifies bottle weight and rejects any that fall outside the required standards. Bottle-clamping conveyors on both sides keep each container stable without tipping during transfer.

• Output: 3,000-6,000 bottles/hour
• Dynamic accuracy: ≥±0.3g
• Power supply: AC220V, 50/60Hz, 1P

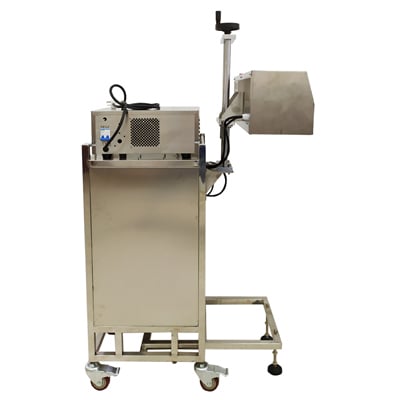

Designed to seal plastic or glass bottles with aluminum foil, this machine ensures leak-proof closure and extended shelf life. It meets general sealing requirements for a wide range of containers.

• Output: 2,400-16,000 bottles/hour
• Sealing diameter: Φ20-80 mm (customizable)
• Maximum power: 3 kW
• Power supply: AC220V, 50/60Hz, 1P, 20A

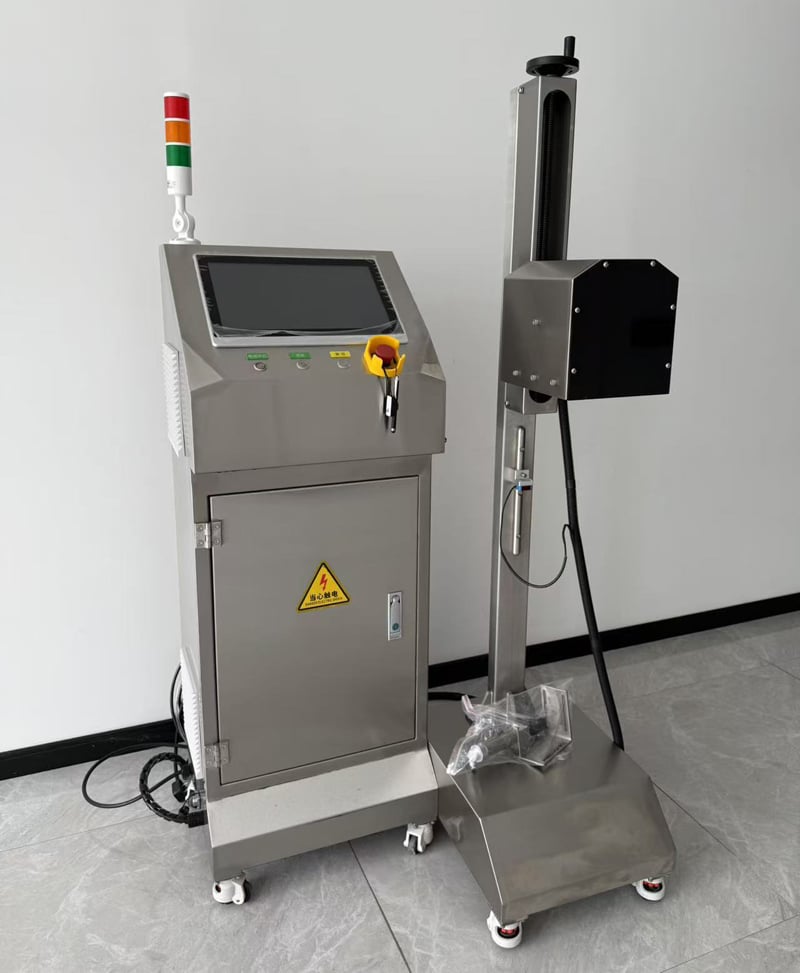

After induction sealing, bottles pass through an infrared inspection station. A thermal imaging camera captures the heat signature of each sealed cap, and the image processing system analyzes temperature distribution to determine seal integrity. Bottles with missing foils, loose caps, or incomplete seals are automatically detected and rejected, ensuring only perfectly sealed products continue down the line.

• Maximum output: 9,000 bottles/hour
• Detection accuracy: ≥99.99%
• Power supply: AC220V, 50/60Hz, 1P

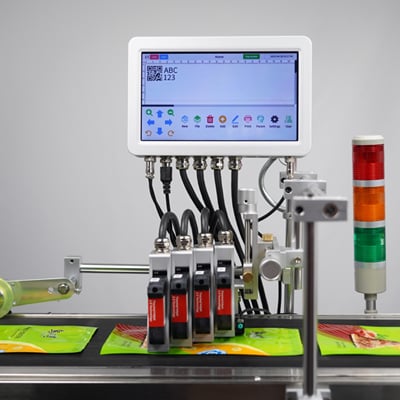

The thermal inkjet printer marks each bottle with production date, batch number, and expiry date. It supports both downward and side printing orientations and offers multiple ink colors for flexible printing options.

• Printing speed: ≤80 m/min
• Character height: 2-12.7 mm (optional 2-25.4 mm or 2-13.5 mm)
• Power supply: AC220V, 50/60Hz, 1P

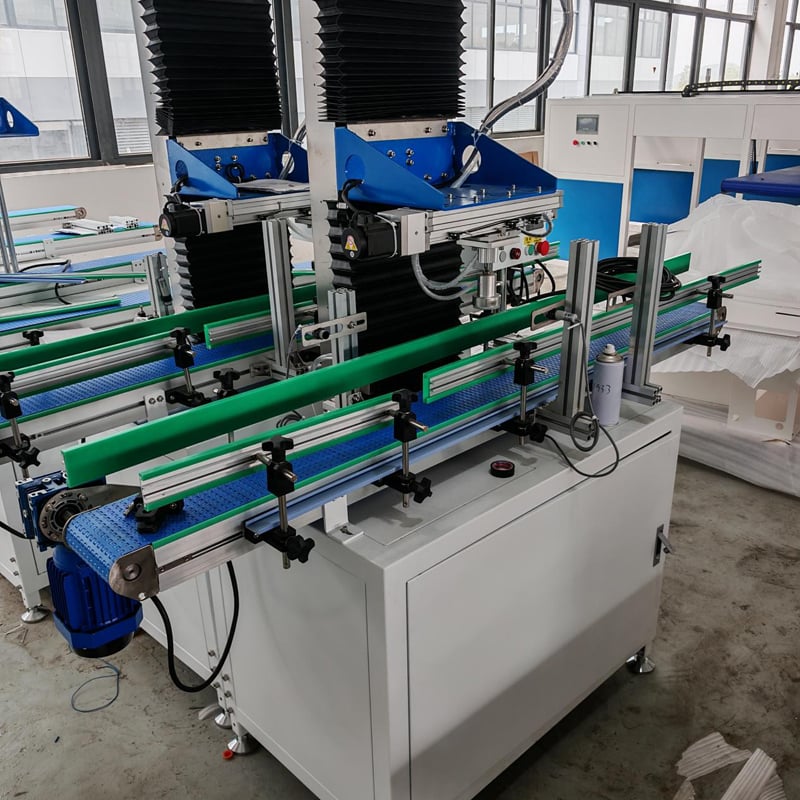

This automatic case packer arranges bottles and loads them into cartons using grippers or suction cups. Depending on output requirements, multiple grippers can be configured for higher packing efficiency.

• Packing speed: 7 cartons/min
• Power supply: AC380V, 50/60Hz, 3P

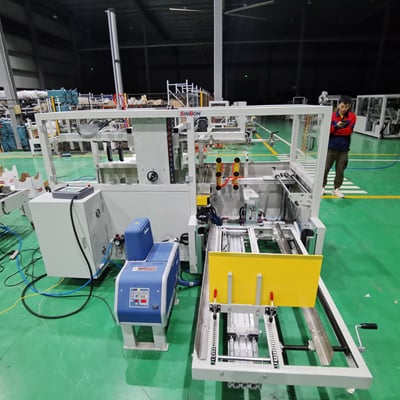

The case erector automatically opens folded cartons, applies hot-melt adhesive, seals the bottom, and delivers the formed cartons to the next station. It provides fast, consistent, and reliable case forming performance.

• Output: 700-900 cartons/hour
• Power supply: AC220V, 50/60Hz, 1P

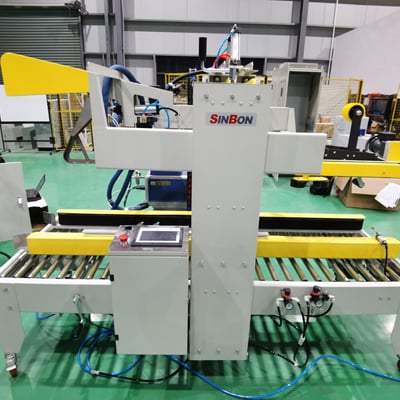

The case sealer uses hot-melt adhesive to close and seal cartons securely, ensuring neat packaging and long-term product protection. The sealed cartons are then transferred to the next process for inspection or palletizing.

• Output: 700-900 cartons/hour
• Power supply: AC220V, 50/60Hz, 1P

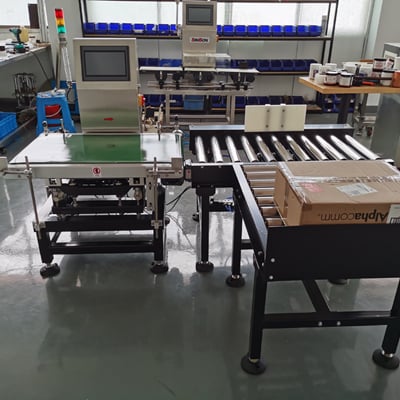

The heavy-duty checkweigher verifies the final carton weight to ensure that no product is missing or overpacked. Nonconforming cartons are automatically rejected.

• Output: 1,800 cartons/hour
• Dynamic accuracy: ≥±2g
• Power supply: AC220V, 50Hz, 1P

The thermal inkjet printer marks cartons with essential production data, including date, batch number, and expiry information. It supports downward and side printing, offering multiple ink color options for clear, durable markings.

• Printing speed: ≤75 m/min
• Printing height: 12.7-50 mm (½-inch cartridge) or 25.4-100 mm (1-inch cartridge)
• Power supply: AC220V, 50/60Hz, 1P

The palletizer automatically stacks cartons onto pallets in multiple layers, replacing manual handling and improving efficiency. Its stacking speed and configuration can be adjusted according to carton size and production requirements.

• Stacking speed: 5 cycles/min (depending on load size)
• Power supply: AC380V, 50Hz, 3P
